20′ Ammunition Container

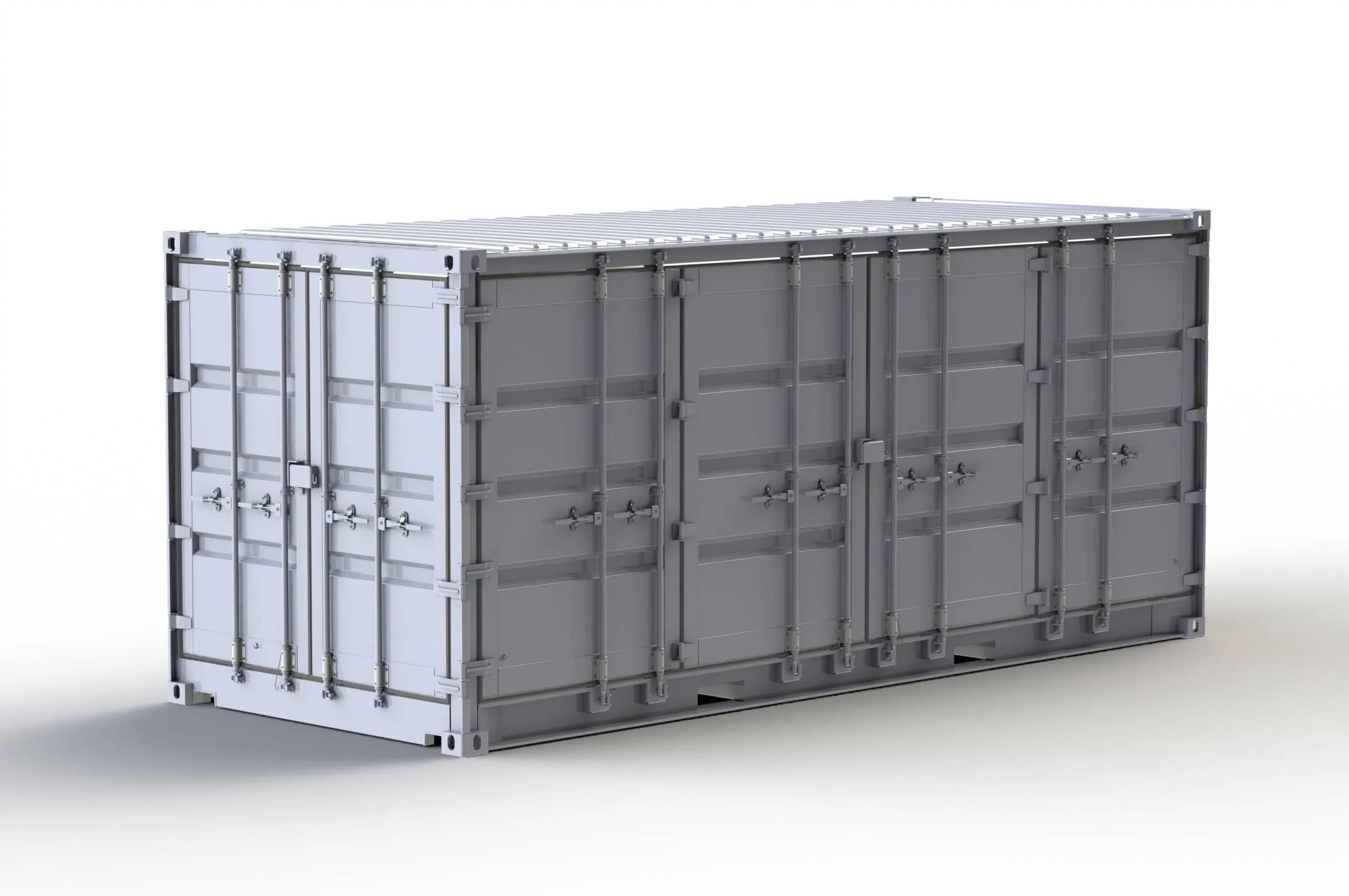

Container has double doors in one end and one long (6m) wall with fully openable doors. The climate control keeps the temperature solid for safe storage. The front end wall is equipped with a climate control unit: and climate control is based on circular airflow. The floor is without grooves, making sure the cargo doesn’t obstruct the air from flowing over the base (e.g. with pallets) and back under the ceiling (leave some space under the ceiling)

The insulating panels on the sidewall, ceiling, and doors are 60mm PIR panels with aluminum on one side and stainless steel covers on the other side with a heat conductivity of 0.34 W/m2K. The insulation underneath the wooden floor is 120mm mineral wool with a heat conductivity of 0.33 W/m2K covered with a steel plate underneath.

Reefer seals are used to prevent heat leakages in the door assemblies. Locations of the electric distribution box and a sealed box for straps (and grounding kit) could be changed upon request. Electric cables (insulated) from LED to the distribution box are placed in between the PIR panels and the roof panels.

This unit is built according to all relevant container ISO standards and to fulfill the operations climate requirements. The container is designed to be used in NATO operations and can be modified for every use as per your requirements

Equipment

• Climate Control unit
• Electricity installation
• Wooden floor with lashing rings
• Fully insulated
• Forklift pockets

Standards

Frame:
ISO: 668, 830, 1161, 1496-1, 3874, 6346. CSC, CCC

Painting:
All RAL codes, categories 1-5 (ISO12944)

Quality:
ISO 9001 (QMS), 9606-1&2 (welding)

General Dimensions

External Length:
6058 (+/- 6)

External Width:
2438(+/- 5)

External Height:
2591 (+/- 5)

Internal Length:
5428mm

Internal Width:
2241mm

Internal Height:
2168mm

Door opening height(end):
2191mm

Door Opening width(end):
2227mm

Side door opening width(Side):
5446mm

Forklift Pocket centre distance:
2080mm

Cubic:
26,3m3

Weight Data

Floor Test load:
2000kg

Racking load test:
150kN

Tare:
4200 kg((+/-2%)

Max Gross:
16 000kg
